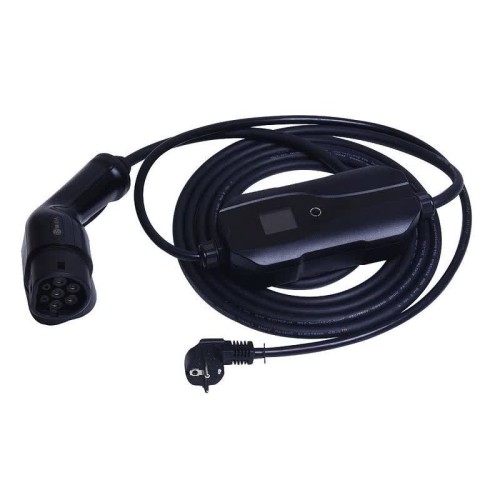

Switchable 10A / 16A EV Type 2 Charger EVSE Electric Vehicle Car Charger
- Brand: OEM
- Product Code: ANSYH-P-S
- Availability: In Stock
-
$160
Product Information
Switchable 10A / 16A EV Type 2 Charger – Reliable 2.2kW Home & Fast EV Charging Station | Premium EVSE Type 2 Charger
Page Description:
Upgrade your electric vehicle charging with our high-performance Switchable 10A/16A EV Type 2 Charger—a versatile EVSE charger designed for fast, safe, and reliable power delivery. Perfect for home, workplace, and public charging stations, this 2.2kW electric car charger supports adjustable current (10A or 16A) to match your electrical infrastructure.
Key Features:
✔ Dual-Mode Charging: Switch seamlessly between 10A EV Charger (2.2kW) and 16A EV Charger (3.6kW) modes.
✔ Type 2 Compatibility: Universal EVSE Type 2 Charger works with all standard electric vehicles.
✔ Robust & Safe: IP65-rated, surge-protected, and built for durability.
✔ Fast Charging: Optimized for efficient power delivery without compromising safety.
Ideal for: Home garages, apartment complexes, fleet charging, and commercial installations.
As a trusted EV charger factory supplier, we deliver innovative, certified charging solutions tailored for modern EVs. Boost your charging experience—order today!
10A EV Type 2 Charger
,EVSE EV Type 2 Charger
,2.2kw Electric Vehicle Car Charger
Product Name: |
16A Portable EV Charger |
Brand: |
ANS |
Rated Current:: |
16A |
Stardard: |
IEC62196-3 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV/CE |
Operating Temperature:: |
-30℃-+50℃ |
Product Name: |
16A Portable EV Charger |
Brand: |
ANS |
Rated Current:: |
16A |
Stardard: |
IEC62196-3 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV/CE |
Operating Temperature:: |
-30℃-+50℃ |
Type 2 Portable EV Charging Box Cable Switchable 10/16A Schuko Plug Electric Vehicle Car Charger EVSE
Product Description
1 Electric parameter | |
1.1 Rated Frequency | 50/60Hz |
1.2 Rated current | 8/10/13/16/A |
1.3 Rated voltage | single-phase, 230V±15%, 50/60Hz |
2 Mechnical Parameter | |
2.1 IP Code | IP67 |
2.2 Charging Adapter Cable | 5 meters cable or custom length |
2.3 Dimensions | W × D × H = 230 × 93× 62 mm |
2.4 Weight | ＜5kg |
2.5 Input Plug Standard | Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug |
3 Functional Description | |
3.1 Charging Control Model | Plug and play |
3.2 Display Screen(Optional) | OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.) |
3.3 Indicator Light | 4 LED indicators-Power/ Connection/ Charging/ Fault |
3.4 RCD type | Type A |
3.5 Adjustable output current | Button options: 8A/10A/13A/16A |
3.6 Preset function | Preset charging time trough the button |
3.7 Safety Protection | surge protection, over temperature, leakage, over/under voltage, over current, ground protection |
4 Environmental Conditions | |
4.1 Operational environment | indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases |
4.2 Vibration | ＜0.5G, no violent vibration and impact |
4.3 Altitude | ≤2000 meters |
4.4 Storage Temperature | -30 ~ 75 ℃ (-22 ~ 167 ℉) |
4.5 Operating Temperature | -30 ~ 55 ℃ (-22 ~ 131 ℉) |
4.6 Operating humidity | 95%RH, no water droplet condensation |
Product Detail
Electricial Performance
- 12 month warranty
- Working Current: 16A 3x2.5mm2+2x0.5mm2 EV Charging Cable
- Working Voltage: 240V AC
- Auto charge recovery
- LED Lights for charging status;
- Waterproof IP66
- Operating Temperatures: -30° To +50°
- Certificates: CE TUV
- Charge from your home power point
- Enclosure is water resistant to IP66
- Electrical approval for EU, CE TUV
- Guaranteed to be fully compatible with ALL Type 2 electric charging
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
When the internal temperature of the control box exceeds 85°C,enter over-tempe
LED Display:
1. Charging Temperature
2. Charging Current
3.Charging Voltage
4. EnergyCharged in KW/h
5. Charging speed in KW
Features
Electric Vehicle Car Portable Charger J1772 Type1 Plug 10A 13A 5metres EV Charging Cabl With UK Plug Mode 2 Wallboxes Port
Warnings:
● Do not use the charging box if it is damaged.
● Only use for EV charging
● Please do not disconnect while the charging box is charging.
Specifications:
Length: Total 5meters
IP Grade: IP65 waterproof
Rated Current: 8/10/13Amp adjustable
Input/Output: 240V 50Hz
Operating Temperature: -30℃~+50℃
Pin Material: Copper Alloy, Silver+ Thermoplastic On the Top
Retardant Frade: UL94V-0
