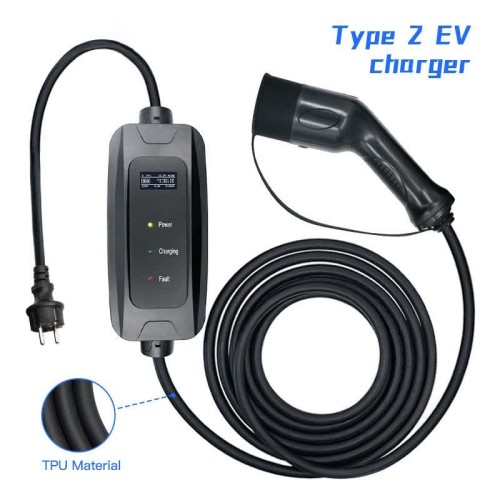

50Hz / 60Hz IP54 Portable EV Charger Type 2 With 3 Pin Plug
- Brand: OEM
- Product Code: ANS-portable-charger
- Availability: In Stock
-
$160
Product Information
As a leading factory supplier of EV charging accessories, we offer a wide range of Portable EV Chargers, Type 2 EV Chargers, and Fast-Charging Solutions designed for efficiency, durability, and convenience. Our products include:
50Hz & 60Hz Portable EV Chargers – Compatible with regional power standards for seamless charging.
IP54 Waterproof Portable EV Chargers – Built for outdoor & all-weather use.
3-Pin Plug EV Chargers – Universal compatibility for home & on-the-go charging.
Fast-Charging EV Chargers – Reduced charging time without compromising safety.
Ideal for:
✔ Home & Residential Charging
✔ Commercial & Public Charging Stations
✔ Travel & Emergency Use
✔ Fleet & Corporate EV Solutions
Why Choose Us?
✅ Factory Direct – Premium Quality & Competitive Pricing
✅ Innovative, Durable & Safety-Certified Designs
✅ Global Compatibility (Type 2, 3-Pin, 50Hz/60Hz Models)
✅ Waterproof & Robust Construction (IP54 Rated)
Upgrade your EV charging experience with our high-efficiency, portable, and fast-charging solutions – engineered for reliability and performance. Contact us today for OEM/ODM opportunities!
50Hz Portable EV Charger
,60Hz IP54 Portable EV Charger
,60Hz IP54 Portable EV Charger Type 2
Product Name: |
Portable EV Charger |
Brand: |
ANS |
Type: |
Portable EV Charger |
Rated Current:: |
16A |
Rated Frequency: |
50Hz/60Hz |
Storage Temperature: |
-40 ℃ To +80℃ |
Stardard: |
EN 61851-1: 2017 / EN 62196-2: 2017/EN 62752:2017 |
Cable Colour: |
Black Or Customization |
Protection: |
IP54 |
Weight: |
3.5kg |
Product Name: |
Portable EV Charger |
Brand: |
ANS |
Type: |
Portable EV Charger |
Rated Current:: |
16A |
Rated Frequency: |
50Hz/60Hz |
Storage Temperature: |
-40 ℃ To +80℃ |
Stardard: |
EN 61851-1: 2017 / EN 62196-2: 2017/EN 62752:2017 |
Cable Colour: |
Black Or Customization |
Protection: |
IP54 |
Weight: |
3.5kg |
EV contral box type 2 adjustable current 16A Portable EV Charger with 3 pin plug
Product Description
|
1 Electric parameter
|
|
|
1.1 Rated Frequency
|
50/60Hz
|
|
1.2 Rated current
|
8/10/13/16
|
|
1.3 Rated voltage
|
single-phase, 230V±15%, 50/60Hz
|
|
2 Mechnical Parameter
|
|
|
2.1 IP Code
|
IP54
|
|
2.2 Charging Adapter Cable
|
5 meters cable or custom length
|
|
2.3 Dimensions
|
W × D × H = 230 × 93× 62 mm
|
|
2.4 Weight
|
＜5kg
|
|
2.5 Input Plug Standard
|
Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug
|
|
3 Functional Description
|
|
|
3.1 Charging Control Model
|
Plug and scoket
|
|
3.2 Display Screen(Optional)
|
OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.)
|
|
3.3 Indicator Light
|
4 LED indicators-Power/ Connection/ Charging/ Fault
|
|
3.4 RCD type
|
Type A
|
|
3.5 Adjustable output current
|
Button options: 8A/10A/13A/16A
|
|
3.6 Preset function
|
Preset charging time trough the button
|
|
3.7 Safety Protection
|
surge protection, over temperature, leakage, over/under voltage, over current, ground protection
|
|
4 Environmental Conditions
|
|
|
4.1 Operational environment
|
indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases
|
|
4.2 Vibration
|
＜0.5G, no violent vibration and impact
|
|
4.3 Altitude
|
≤2000 meters
|
|
4.4 Storage Temperature
|
-30 ~ 75 ℃ (-22 ~ 167 ℉)
|
|
4.5 Operating Temperature
|
-30 ~ 55 ℃ (-22 ~ 131 ℉)
|
|
4.6 Operating humidity
|
95%RH, no water droplet condensation
|
Product Detail
Features
- Maximum power: 3.7 kW (single phase)
- Operating voltage: 240 VAC
- Maximum phase current: 16 A
- Output Connector: Type 2
- Connector type: female, standard IEC62196-2
- Input plug: SCOKET
- Box material: Plastic
- Indication: LED indication when powering, connecting, charging, or having a problem
- Degree of protection: IP54 protection against environmental impact
- Cable color: black
- Connector color: black
- Cable size: 3 x 2.5 mm2 + 2 x 0.75 mm2
- Output cable length: 5 meters
- Operating temperature: 25 ° C to 50 ° C (storage) / -30 ° C to 85 ° C (in use)
- Certificates: CE
- Inlet cable length: 55 cm
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
