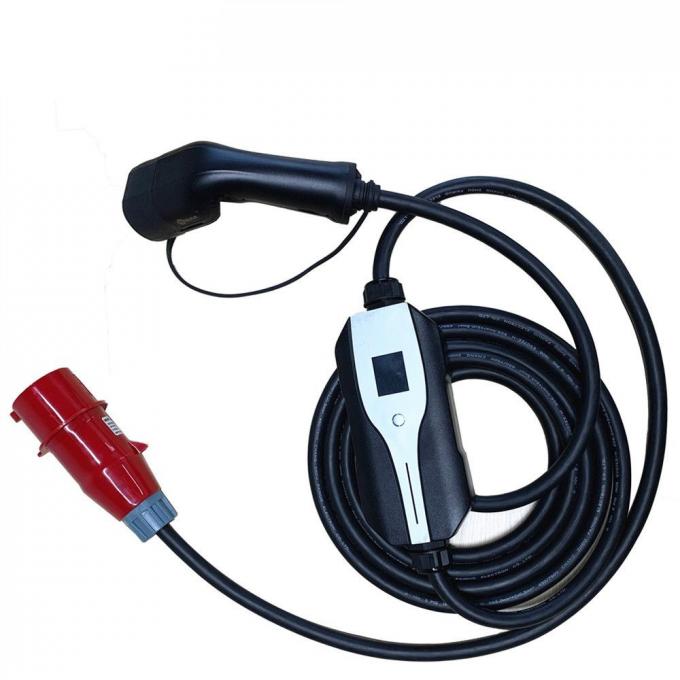

SAE J1772 Type 1 Portable Level 2 EV Charger EVSE Switchable With CEE Plug
- Brand: OEM
- Product Code: ANSYH-P-S
- Availability: In Stock
-
$160
Product Information
Product Description:
As a leading factory supplier of premium EV charging solutions, we proudly present our SAE J1772 Type 1 Portable EV Charger – a high-performance Level 2 EVSE Charger designed for efficiency, versatility, and safety. This Portable EV Charger with CEE Plug delivers fast charging (up to 7.4kW) and features a switchable current function (10A/16A/32A) for optimized power control.
Key Features & Innovations:
✔ Type 1 EV Charger – Fully compliant with SAE J1772 standards, ensuring broad compatibility with EVs like Tesla (with adapter), Nissan Leaf, BMW, and more.
✔ Portable & Robust – Lightweight yet durable, ideal for home, travel, and commercial use.
✔ CEE Plug EV Charger – Supports 220-240V inputs with EU/UK/AU plug options for global flexibility.
✔ Smart Protection – Built-in surge protection, over-current/voltage shutdown, and weather-resistant casing (IP65).
Applications:
✔️ Home Charging – Convenient overnight charging with adjustable power settings.
✔️ On-the-Go – Compact design for road trips, hotels, or emergency use.
✔️ Fleet & Commercial – Reliable solution for shared EVs, dealerships, and rental services.
Upgrade to our Fast Charging EV Charger for unmatched speed and reliability. EVSE Type 1 Charger engineered for the future – contact us for OEM/ODM solutions today!
Why Choose Us?
✅ Factory-direct pricing & strict QC
✅ Customizable plugs/colors/cable lengths
✅ CE, RoHS, TUV-certified
Boost your EV experience with professional-grade charging – order now!
EVSE Portable Level 2 EV Charger
,Type1 Portable Level 2 EV Charger
,Level 2 EVSE Charger
Product Name: |
16A Portable EV Charger |
Brand: |
ANS |
Rated Current:: |
16A |
Stardard: |
IEC62196-3 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV/CE |
Operating Temperature:: |
-30℃-+50℃ |
Product Name: |
16A Portable EV Charger |
Brand: |
ANS |
Rated Current:: |
16A |
Stardard: |
IEC62196-3 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV/CE |
Operating Temperature:: |
-30℃-+50℃ |
Level 2 EV Charger J1772 Type 1 32A EVSE Switchable Electric Vehicle Charging Station with CEE plug
Product Description
1 Electric parameter | |
1.1 Rated Frequency | 50/60Hz |
1.2 Rated current | 8/10/13/16A |
1.3 Rated voltage | single-phase, 230V±15%, 50/60Hz |
2 Mechnical Parameter | |
2.1 IP Code | IP67 |
2.2 Charging Adapter Cable | 5 meters cable or custom length |
2.3 Dimensions | W × D × H = 230 × 93× 62 mm |
2.4 Weight | ＜5kg |
2.5 Input Plug Standard | Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug |
3 Functional Description | |
3.1 Charging Control Model | Plug and play |
3.2 Display Screen(Optional) | OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.) |
3.3 Indicator Light | 4 LED indicators-Power/ Connection/ Charging/ Fault |
3.4 RCD type | Type A |
3.5 Adjustable output current | Button options: 8A/10A/13A/16A |
3.6 Preset function | Preset charging time trough the button |
3.7 Safety Protection | surge protection, over temperature, leakage, over/under voltage, over current, ground protection |
4 Environmental Conditions | |
4.1 Operational environment | indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases |
4.2 Vibration | ＜0.5G, no violent vibration and impact |
4.3 Altitude | ≤2000 meters |
4.4 Storage Temperature | -30 ~ 75 ℃ (-22 ~ 167 ℉) |
4.5 Operating Temperature | -30 ~ 55 ℃ (-22 ~ 131 ℉) |
4.6 Operating humidity | 95%RH, no water droplet condensation |
Product Detail
Electricial Performance
- 12 month warranty
- Working Current: 16A 3x2.5mm2+2x0.5mm2 EV Charging Cable
- Working Voltage: 240V AC
- Auto charge recovery
- LED Lights for charging status;
- Waterproof IP66
- Operating Temperatures: -30° To +50°
- Certificates: CE TUV
- Charge from your home power point
- Enclosure is water resistant to IP66
- Electrical approval for EU, CE TUV
- Guaranteed to be fully compatible with ALL Type 2 electric charging
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
When the internal temperature of the control box exceeds 85°C,enter over-tempe
LED Display:
1. Charging Temperature
2. Charging Current
3.Charging Voltage
4. EnergyCharged in KW/h
5. Charging speed in KW
Features
Electric Vehicle Car Portable Charger J1772 Type1 Plug 10A 13A 5metres EV Charging Cabl With UK Plug Mode 2 Wallboxes Port
Warnings:
● Do not use the charging box if it is damaged.
● Only use for EV charging
● Please do not disconnect while the charging box is charging.
Specifications:
Length: Total 5meters
IP Grade: IP65 waterproof
Rated Current: 8/10/13Amp adjustable
Input/Output: 240V 50Hz
Operating Temperature: -30℃~+50℃
Pin Material: Copper Alloy, Silver+ Thermoplastic On the Top
Retardant Frade: UL94V-0
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
