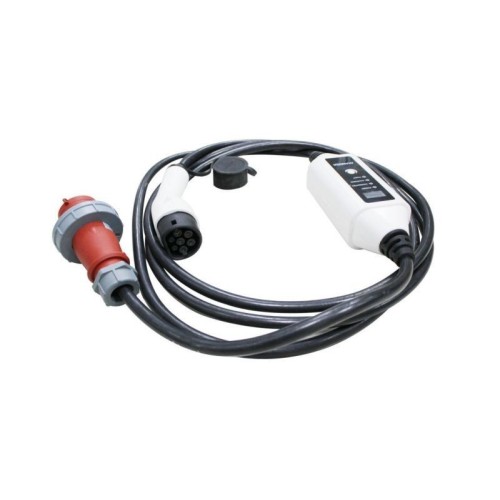

22KW 3phase Portable EV Charger Type 2 Fast EV Charger 32Amp 400V
- Brand: OEM
- Product Code: ANSYH-CCS-125
- Availability: In Stock
-
$350
Product Information
22KW 3-Phase Portable EV Charger | 32A Fast Charging | Type 2 Electric Vehicle Charger | 400V Portable EVSE
Premium 22KW 3-phase portable EV charger (32A, 400V) for fast, efficient charging. Type 2 connector, rugged & compact design—ideal for home, commercial, and on-the-go use. OEM/ODM support.
Page Description:
22KW 3-Phase Portable EV Charger – Fast, Reliable, Anywhere
Power your electric vehicle at full speed with our 22KW 3-phase portable EV charger, delivering 32A fast charging via a Type 2 connector (IEC 62196). Designed for versatility, this 400V portable EVSE combines industrial-grade durability with plug-and-play convenience—perfect for home garages, fleet depots, hotels, and roadside assistance.
Key Features:
✅ 22KW High Power: 3-phase charging for compatible EVs (Tesla, BYD, Audi, etc.).
✅ 32A Fast Charging: 3x faster than standard 7.4KW chargers.
✅ Type 2 Socket/Plug: Universal compatibility (Mennekes standard).
✅ Portable & Robust: IP65-rated casing, 5-meter cable, compact carry handle.
✅ Smart Safety: Overload/overvoltage protection, dynamic LED status display.
Applications:
Residential: Upgrade home charging with industrial-grade reliability.
Commercial: Fleet charging, hotels, and public parking with 400V infrastructure.
Emergency/Mobile: Roadside assistance, travel, and temporary installations.
Innovation Meets Demand:
As a top-tier OEM/ODM factory, we offer customizable solutions (branding, cable length, voltage options). Our chargers meet CE, RoHS, and ISO certifications—trusted by global EV brands.
Why Choose Us?
✔ 22KW Fastest Portable Charging
✔ Future-Proof 3-Phase Technology
✔ 24/7 Technical Support
Boost your EV experience—request a quote today!
3phase Portable EV Charger
,22KW Portable EV Charger
,32Amp Fast EV Charger
Product Name: |
32A Portable EV Charger |
Brand: |
ANS |
Rated Current:: |
32A |
Stardard: |
IEC62196-3 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV/CE |
Operating Temperature:: |
-30℃-+50℃ |
Application: |
AC Home Charging |
Product Name: |
32A Portable EV Charger |
Brand: |
ANS |
Rated Current:: |
32A |
Stardard: |
IEC62196-3 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV/CE |
Operating Temperature:: |
-30℃-+50℃ |
Application: |
AC Home Charging |
22KW 3phase fast ev charger with 32Amp red CEE 400V EV charger type 2 portable EV Charger
Product Description
1 Electric parameter | |
1.1 Rated Frequency | 50/60Hz |
1.2 Rated current | 8/10/13/16/32A |
1.3 Rated voltage | single-phase, 230V±15%, 50/60Hz |
2 Mechnical Parameter | |
2.1 IP Code | IP67 |
2.2 Charging Adapter Cable | 5 meters cable or custom length |
2.3 Dimensions | W × D × H = 230 × 93× 62 mm |
2.4 Weight | ＜5kg |
2.5 Input Plug Standard | Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug |
3 Functional Description | |
3.1 Charging Control Model | Plug and play |
3.2 Display Screen(Optional) | OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.) |
3.3 Indicator Light | 4 LED indicators-Power/ Connection/ Charging/ Fault |
3.4 RCD type | Type A |
3.5 Adjustable output current | Button options: 8A/10A/13A/16/32A |
3.6 Preset function | Preset charging time trough the button |
3.7 Safety Protection | surge protection, over temperature, leakage, over/under voltage, over current, ground protection |
4 Environmental Conditions | |
4.1 Operational environment | indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases |
4.2 Vibration | ＜0.5G, no violent vibration and impact |
4.3 Altitude | ≤2000 meters |
4.4 Storage Temperature | -30 ~ 75 ℃ (-22 ~ 167 ℉) |
4.5 Operating Temperature | -30 ~ 55 ℃ (-22 ~ 131 ℉) |
4.6 Operating humidity | 95%RH, no water droplet condensation |
Product Detail
Features
This 5 meter mobile charger can be used to charge your Tesla from a red 32A single phase CEE socket. The charger is rated at 32A max. Your electric vehicle will charge at 11kW
Please make sure you charge from a correctly installed red CEE socket as depicted on the left, that is able to deliver 32A, installed with minimum 6mm² wires and is electrically protected with an RCBO.
The charger features:
1.Earth leakage protection
2.Over current protection
3.Over voltage protection
4.Low voltage protection
5.Short circuit protection
6.Overheat protection
