Product Information
High-quality Type 2 EV Charging Cables (6M) & Home Charging Stations for seamless electric vehicle powering. Durable, safety-certified, and compatible with major EV brands. Trusted factory supplier – bulk orders welcome!
Product Listing & Page Description:
High-Performance Type 2 EV Charging Cables & Home Charging Solutions
As a leading factory supplier of EV charging accessories, we specialize in premium 6M Type 2 EV Charging Cables and Home Charging Stations, engineered for reliability, safety, and fast power delivery.
Key Product Series:
Type 2 to Type 2 Charging Cables (6M, 32A, IEC 62196 certified)
Portable EV Chargers – Compact & travel-ready
Wall-Mounted Home Charging Stations – Smart, weatherproof designs
Why Choose Our EV Charging Cables?
✔ Robust & Safe – High-grade materials, overcurrent/overheat protection
✔ Wide Compatibility – Tesla, BMW, Audi, VW, and other major EVs
✔ Fast Charging – Optimized for 7.4kW~22kW systems
✔ Flexible Use – Home, workplace, public stations
Innovative Features:
Tangle-free design for effortless handling
LED status indicators for real-time monitoring
IP67-rated options for outdoor durability
Applications:
✔️ Residential Charging – Convenient home power solutions
✔️ Commercial Use – Offices, hotels, and fleet charging
✔️ On-the-Go – Portable cables for travel emergencies
B2B Advantage: Customizable lengths, OEM/ODM support, and bulk pricing. Elevate your EV charging experience with factory-direct quality!

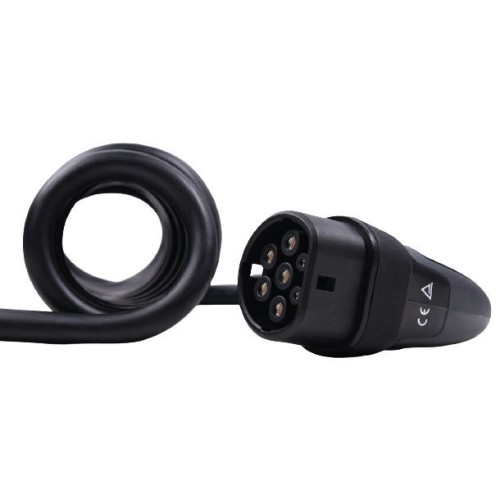

22kW Type 2 EV Charging Cables
,6M Type 2 EV Charging Cables
,IEC 62196 Type 2 Tethered Charger
Product Name: |
Type 2 Ev Charging Cables |
Amps: |
32A |
Voltage: |
480V |
Connector Standard: |
Type 2 Open End Cables |
Length: |
6M |
Materials: |
Huntsman |
Plug Standard: |
IEC 62196 |
Grounding: |
Standard Grounding |
Warranty: |
24 Months |
Phase: |
3phase |
Product Name: |
Type 2 Ev Charging Cables |
Amps: |
32A |
Voltage: |
480V |
Connector Standard: |
Type 2 Open End Cables |
Length: |
6M |
Materials: |
Huntsman |
Plug Standard: |
IEC 62196 |
Grounding: |
Standard Grounding |
Warranty: |
24 Months |
Phase: |
3phase |
Tethered EV Cables IEC 62196 32A 480V 3phase 22kW with 6M Coliled Cables Type 2 EV Charging Cables with Open end
Product Features
- Conform to the provisions and requirements of IEC 62196-2 2016 2-lle
- Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
- XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
- Excellent protection performance, protection grade achieved IP55 ( working condition )
- Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
Applied Materials
- Shell material: thermoplastics, flame retardant grade UL94-0
- Operating temperature: -30°C~ +50°C
| ProductModel: | ANSAG-T2-32A | |
| Product Type | Type 2 ev charging cable | |
| Stardard: | IEC 62196-2 | |
| Rated Voltage: | AC 480V | |
Rated Current:16 | A | |
| Withstanding voltage: | 2000V | |
| Working temperature: | -30℃ to +65℃ | |
| StorageTemperature: | -40℃ to +70℃ | |
| Terminal temperature rise: | <50K | |
| Contact impedance: | 0.5mMax | |
| Protection level: | IP67 | |
Certifications: | TUV CE | |
| Warranty: | 2 years | |
| Plug Colour: | Black, Red, Orange, Yellow, Green, Blue or Customization | |
| Mechanical life: | No-load plug in/pull out>10000 times | |
| Insertion and Extration Force: | 45N | |
Impato fex ternal force: | Can afford 1m drop and 2T vehicle run over pressure | |
| Part name | Material | Supplier |
| Cable | PUR (TPU) | HUNTSMAN: A85P4380 |
| Shell of plug | PC+PBT | SABIC:V3900WX |
| Head of plug | PA66+GF25 | DUPONT: FR50 |
Our business scope includes charging pile equipment, wind power generation equipment, photovoltaic power generation equipment
and other products, providing targeted products and solutions for government public power, transportation service charging, and private
supporting power supply facilities.
All the products are produced in strict accordance with CQC standards, and obtained CCC, TUV, UL and other certifications.
We adhere to the development concept of high efficiency, energy saving and environmental protection. With independent innovation and customer service as the foundation; market-oriented, quality of survival. We firmly believe that ANS EVSE will surely set sail and create brilliance!
Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949
