Product Information
As a leading OEM/ODM factory supplier of premium EV charging accessories, we specialize in high-performance portable EV chargers designed for versatility and durability. Our 16A Type 2 EV charging cable features TPU-reinforced construction for superior abrasion resistance, flexibility, and weatherproof performance—perfect for on-the-go charging.
Key Features:
✔ 16A Type 2 Connector – Compatible with most EVs & public charging stations.
✔ TPU Outer Layer – Ultra-tough, tangle-free, and all-weather ready.
✔ Compact & Portable – Lightweight design for effortless travel storage.
✔ Smart Safety Protections – Overcurrent, overvoltage, and overheating safeguards.
Ideal For:
Travel Charging – Keep your EV powered during road trips or holidays.
Home & Workplace – Backup charging solution for daily use.
Public Stations – Universal Type 2 compatibility for hassle-free charging.
Innovation Meets Reliability:
Our EV charging cables are engineered for fast, stable power delivery while prioritizing user safety and convenience. Customizable lengths & branding options available for bulk orders.
Upgrade Your EV Experience – Contact Us for OEM/ODM Solutions Today!

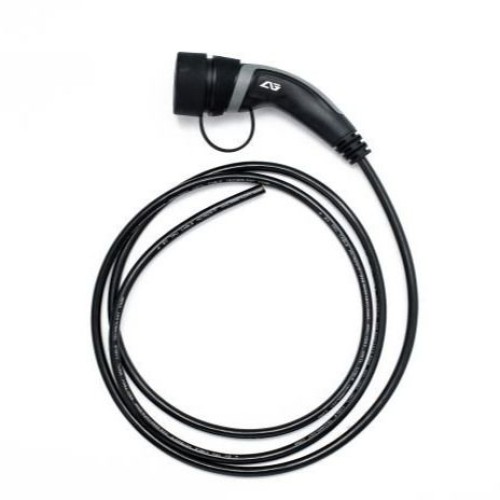

16A Type 2 EV Charging Cables
,TPU Type 2 EV Charging Cables
Product Name: |
Type 2 EV Charging Cables |
Brand: |
ANS |
Material: |
TPU |
Rated Current:: |
16A |
Stardard: |
IEC 62196-2 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV |
Type: |
Electrical Plug |
Color: |
Customized |
Product Name: |
Type 2 EV Charging Cables |
Brand: |
ANS |
Material: |
TPU |
Rated Current:: |
16A |
Stardard: |
IEC 62196-2 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV |
Type: |
Electrical Plug |
Color: |
Customized |
16A TPU material 5 meters long color customized excellent appearance type 2 EV Charging cables
Product Description
| Product Type: | Type 2 16A with cable | |
| Parameters | ||
| Stardard: | EN 62196-1:2012/EN 62196-2:2017/EN 50620 | |
| Rated Voltage | AC 480V/250V | |
| Rated Current | 16A | |
| Withstanding voltage | 2000V | |
| Working temperature | -30℃ to +65℃ | |
| Storage Temperature | -40℃ to +70℃ | |
| Terminal temperature rise | <50K | |
| Contact impedance | 0.5mMax | |
| Protection level | IP65 | |
| Certifications | TUV CE | |
| Warranty | 1 years | |
| Plug Colour | Black, Red, Orange, Yellow, Green, Blue, Purple or Customization | |
| Mechanical properties | ||
| Mechanical life | no-load plug in/pull out>10000 times | |
| Insertion and Extration Force: | 45N | |
| Impat of external force | can afford 1m drop and 2T vehicle run over pressure | |
| Material of Connectors | ||
| Part name | Material | Supplier |
| Cable | PUR (TPU) | HUNTSMAN: A85P4380 |
| Shell of plug | PC+PBT | SABIC:V3900WX |
| Head of plug | PA66+GF25 | DUPONT: FR50 |
| Charging Cable Spec | ||
| Charging Cable Length | 5m(16.4ft) or Customization | |
| Cable Specification: | 3*2.5mm²+2*0.5mm²(16A)/3*6mm²+2*0.5mm²(32A) | |
| 5*2.5mm²+2*0.5mm²(16A)/5*6mm²+2*0.5mm²(32A) | ||
| Cable Colour | Black or Customization | |
Product Detail
Brief Introduction
The IEC 62196 Type 2 connector (commonly referred to as mennekes) is used for charging electric cars within Europe.
Mechanical Properties | |||
Mechanical life | no-load plug> 10000 | Insertion force: | <100N |
Impact of external force | can afford 1m drop and 2t vehicle run over pressure | ||
Electrical Performance | |||
The rated current | 16A,20A,32A | The rated voltage | 120V,250V |
Insulation resistance | > 1000MΩ (DC500V) | Pins temperature rise | <50K |
Withstand voltage | 2500V | Contact impedance | 0.5mΩ Max |
Features
1.Conform to the provisions and requirements of IEC 62196-2 2016 2-IIb.
2.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3.XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
4.Excellent protection performance, protection grade achieved IP55 (working condition).
5.Adopted double color coating technology, personalized custom a variety of colors(Orange, blue, green,grey).
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
