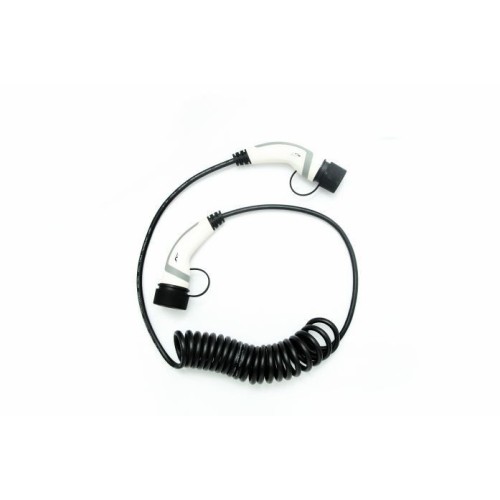

White 32A Spiral cable Type 2 to Type 2 Electric Vehicle charging cable
- Brand: OEM
- Product Code: ANSAG-T2-T2-32-ST
- Availability: In Stock
-
$99
Product Information
Product Description:
Upgrade your EV charging experience with our high-performance Type 2 to Type 2 EV Charging Cable, engineered for reliability, safety, and efficiency. Designed to meet IEC 62196-2 standards and TUV certified, this 32A spiral EV cable ensures fast, stable charging for a wide range of electric vehicles.
Key Features & Benefits:
✔ Durable & Flexible – Made with abrasion-resistant TPU material, our spiral design offers tangle-free convenience and extended lifespan.
✔ All-Weather Ready – IP67 waterproof rating guarantees safe operation in rain, snow, or dust.
✔ Universal Compatibility – Ideal for home, public stations, and commercial use (e.g., Tesla, BMW, Audi, Hyundai, etc.).
✔ Safety Assured – Overload protection, flame-retardant casing, and secure connectors.
✔ 2-Year Warranty – Trust in our quality with guaranteed after-sales support.
Applications:
• Home & residential charging
• Public charging stations
• Fleet & commercial EV solutions
• Travel-friendly portable charging
Innovation Meets Reliability – As a leading EV charging accessories factory, we combine cutting-edge technology with rigorous testing to deliver premium cables for the future of mobility.
Choose Quality. Charge with Confidence. 🚗⚡
Product Name: |
White 32A Spiral Cable Type 2 To Type 2 Electric Vehicle Charging Cable |
Brand: |
ANS |
Material: |
TPU |
Rated Current:: |
32A |
Stardard: |
IEC 62196-2 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV |
Product Name: |
White 32A Spiral Cable Type 2 To Type 2 Electric Vehicle Charging Cable |
Brand: |
ANS |
Material: |
TPU |
Rated Current:: |
32A |
Stardard: |
IEC 62196-2 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV |
White 32A Spiral cable Type 2 to Type 2 Electric Vehicle charging cable
Product Description
|
Input & Output |
|||
|
Input voltage/Output voltage |
100~250V AC |
Max. output current |
32A 3Phase |
|
Input frequency |
47~63Hz |
Charging interface type |
Type 2 |
|
Max. output power |
22KW |
|
|
|
Protection |
|||
|
Over voltage protection |
yes |
Earth leakage protection |
yes |
|
Under voltage protection |
yes |
Over-temp protection |
yes |
|
Over load protection |
yes |
Lightning protection |
yes |
|
Short circuit protection |
yes |
|
|
|
Function and Accessory |
|||
|
Ethernet/WIFI/4G/Bluetooth |
No |
Cable gauge |
5*6+2*0.5mm2
|
|
Plug type |
Type 2-Type2 male&female |
Plug material |
Thermoplastics |
|
Length |
5 meters |
Cable material |
TPU |
|
Working environment |
|||
|
Waterproof Protection degree |
IP67 |
Maximum altitude |
<2000m |
|
Environment temperature |
-40℃ ~ +50℃ |
Cooling |
Natural air cooling |
|
Relative humidity |
0-95% non-condensing |
Standby power consumpiton |
<8W |
|
Package |
|||
|
Dimension (W/H/D) |
40/38/8cm |
Weight |
4KG |
|
Certificate |
CE, TUV, |
||
Product Detail
Feature of Type2-Type 2 Ev Charging Cables
Conform to the provisions and requirements of IEC 62196-2 2016 2-lle.
Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
Excellent protection performance, protection grade achieved IP55 ( working condition ).
Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey ).
| Product Type | Rated Current/voltage |
Cable Specifications |
Colour |
| AG-IEC 2-lle-16P | 16A/250V | 3 x 2.5mm2+2 x 0.5mm2 | orange/black |
| AG-IEC 2-lle-16P-3 | 16A/480V | 5 x 2.5mm2+2 x 0.5mm2 | orange/black |
| AG-IEC 2-lle-20P | 20A/250V | 3 x 2.5mm2+2 x 0.5mm2 | orange/black |
| AG-IEC 2-lle-20P-3 | 20A/480V | 5 x 2.5mm2+2 x 0.5mm2 | orange/black |
| AG-IEC 2-lle-32P | 32A/250V | 3 x 6mm2+2 x 0.5mm2 | orange/black |
| AG-IEC 2-lle-32P-3 | 32A/480V | 5 x 6mm2+2 x 0.5mm2 | orange/black |
