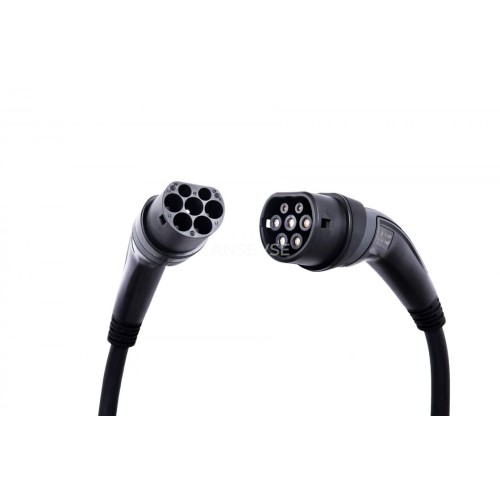

16A 480V 3 phase electric car chargers IEC 62196 ev charging cable type 2
- Brand: OEM
- Product Code: ANSAG-T2-T2-16A
- Availability: In Stock
-
$99
Product Information
Boost your EV charging efficiency with our high-quality 16A 480V EV Charger and IEC 62196 Type 2 EV Charging Cable. Designed for reliability and speed, our Mode 3 EV Charger Cable ensures safe, stable power delivery for electric vehicles.
Key Features:
✔ Type 2 to Type 2 EV Cable – Universal compatibility with most EVs & charging stations
✔ 5M Electric Car Charger – Flexible length for convenient home & commercial use
✔ 3-Phase EV Charger – Faster charging with robust 480V industrial power
✔ Huntsman EV Cable – High-grade materials for durability & weather resistance
✔ Full EV Charger Warranty – Trusted factory support for long-term performance
Ideal for:
Home & Public Charging Stations
Fleet & Commercial EV Operators
Industrial & Fast-Charging Applications
Upgrade to a smarter, stronger charging solution—engineered for the future of electric mobility. Contact us today for OEM/ODM solutions!
Amps: |
16A |
Voltage: |
480V |
Charging Mode: |
Mode 3 Ev Charging Cable |
Connector Standard: |
Type 2 To Type 2 |
Length: |
5M |
Materials: |
Huntsman |
Plug Standard: |
IEC 62196 |
Grounding: |
Standard Grounding |
Warranty: |
24 Months |
Phase: |
1phase |
Amps: |
16A |
Voltage: |
480V |
Charging Mode: |
Mode 3 Ev Charging Cable |
Connector Standard: |
Type 2 To Type 2 |
Length: |
5M |
Materials: |
Huntsman |
Plug Standard: |
IEC 62196 |
Grounding: |
Standard Grounding |
Warranty: |
24 Months |
Phase: |
1phase |
16A 480V 3 phase IEC 62196 ev charging cable type 2
Product Features
-Standard Connector, can be identified by EV (with Type 2 inlet) correctly and charge effectively.
-Rugged design. Its structural strength is sufficient enough to support the rolling of an electric car.
-Unique Arc Extinguishing technique makes sure that there won't have any electric sparks when plugging in and plugging out.
-Safe & Reliable. The cable is made of flame-retardant TPE (TPU) material, which can withstand the direct fire combustion within a safe time.
-Durable. The advanced Crimping Technology ensures a working life of over 3000 times safe plugging in or out without any off-line error.
| ProductModel: | ANSAG-T2-T2-16A | |
| Product Type | Type 2 to Type 2 ev charging cable | |
| Stardard: | IEC 62196-2 | |
| Rated Voltage: | AC 480V | |
|
Rated Current: |
16A | |
| Withstanding voltage: | 2000V | |
| Working temperature: | -30℃ to +65℃ | |
| StorageTemperature: | -40℃ to +70℃ | |
| Terminal temperature rise: | <50K | |
| Contact impedance: | 0.5mMax | |
| Protection level: | IP67 | |
|
Certifications: |
TUV CE | |
| Warranty: | 2 years | |
| Plug Colour: | Black, Red, Orange, Yellow, Green, Blue or Customization | |
| Mechanical life: | No-load plug in/pull out>10000 times | |
| Insertion and Extration Force: | 45N | |
|
Impato fex ternal force: |
Can afford 1m drop and 2T vehicle run over pressure |
|
| Part name | Material | Supplier |
| Cable | PUR (TPU) | HUNTSMAN: A85P4380 |
| Shell of plug | PC+PBT | SABIC:V3900WX |
| Head of plug | PA66+GF25 | DUPONT: FR50 |
Conform to the provisions and requirements of IEC 62196-2 2016 2-lle
Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
Excellent protection performance, protection grade achieved IP55 ( working condition )
Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
Applied Materials
Shell material: thermoplastics, flame retardant grade UL94-0
Operating temperature: -30°C~ +50°C
Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949
