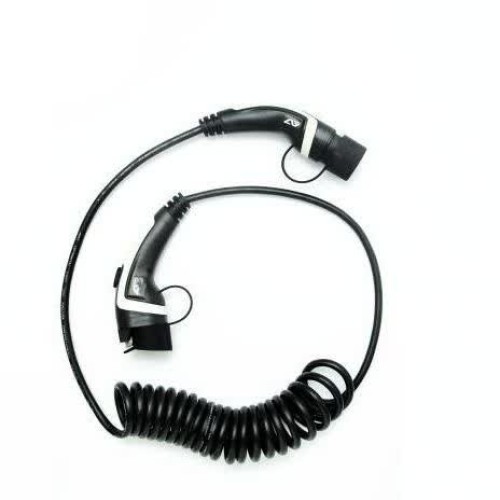

Type 1 To Type 2 IP67 Electric Car Charging Cable With SAE J1772 Spring Cable
- Brand: OEM
- Product Code: ANSAG-T2-T2-32-ST
- Availability: In Stock
-
$99
Product Information
High-performance Type 1 to Type 2 EV charging cable with IP67 waterproof rating, SAE J1772 compliance, and ultra-lightweight (4KG) design. Ideal for home, public & commercial charging. Durable, safe & fast-charging solution.
Premium EV Charging Cable – Type 1 to Type 2 | IP67 Waterproof & SAE J1772 Certified
Key Features:
✔ Type 1 to Type 2 EV Charging Cable – Universal compatibility with major EV models
✔ IP67 Waterproof & Dustproof – Superior durability for indoor/outdoor use
✔ SAE J1772 Spring Cable – Enhanced flexibility & kink resistance
✔ Ultra-Lightweight (4KG) – Easy handling & portability
✔ High-Safety Standards – Overload & short-circuit protection
Applications:
✔️ Home Charging – Safe & reliable overnight charging
✔️ Public Stations – Weather-resistant for all conditions
✔️ Fleet & Commercial Use – Heavy-duty performance for high-demand environments
Why Choose Our EV Charging Cable?
As a leading EV charging accessories manufacturer, we deliver innovative, high-efficiency cables with robust waterproofing (IP67) and SAE J1772 compliance. Our lightweight yet durable design ensures fast, stable charging for all electric vehicles.
Upgrade to a smarter, safer charging experience! 🚗⚡
IP67 Electric Car Charging Cable
,4KG Electric Car Charging Cable
Product Name: |
32A Type 1 To Type 2 EV Charging Cable |
Brand: |
ANS |
Material: |
TPU |
Rated Current:: |
32A |
Stardard: |
IEC 62196-2 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV |
Color: |
White |
Product Name: |
32A Type 1 To Type 2 EV Charging Cable |
Brand: |
ANS |
Material: |
TPU |
Rated Current:: |
32A |
Stardard: |
IEC 62196-2 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV |
Color: |
White |
32A Spring Cable SAE J1772 to IEC 62196-2 EV Plug Connector Type 1 to Type 2 EV Charging Cable
Product Description
|
Input & Output |
|||
|
Input voltage/Output voltage |
100~250V AC |
Max. output current |
32A 1Phase |
|
Input frequency |
47~63Hz |
Charging interface type |
Type1-Type 2 |
|
Max. output power |
22KW |
|
|
|
Protection |
|||
|
Over voltage protection |
yes |
Earth leakage protection |
yes |
|
Under voltage protection |
yes |
Over-temp protection |
yes |
|
Over load protection |
yes |
Lightning protection |
yes |
|
Short circuit protection |
yes |
|
|
|
Function and Accessory |
|||
|
Ethernet/WIFI/4G/Bluetooth |
No |
Cable gauge |
3x6+2x0.5mm2
|
|
Plug type |
Type 1-Type2 male&female |
Plug material |
Thermoplastics |
|
Length |
5 meters |
Cable material |
TPU |
|
Working environment |
|||
|
Waterproof Protection degree |
IP67 |
Maximum altitude |
<2000m |
|
Environment temperature |
-40℃ ~ +50℃ |
Cooling |
Natural air cooling |
|
Relative humidity |
0-95% non-condensing |
Standby power consumpiton |
<8W |
|
Package |
|||
|
Dimension (W/H/D) |
40/38/8cm |
Weight |
4KG |
|
Certificate |
CE, TUV, |
||
Product Detail
Feature of Type1-Type 2 Ev Charging Cables
Mechanical life: unloading and inserting >10,000 times
Impact resistance: 1m height drop and 2 tons vehicle overpressure operation
Insulation resistance: >1000Ω (DC500V)
Withstanding voltage: 2500V
Contact impedance: 0.5mΩ Max
Pin temperature rise: <50K
EV charging cable with charging plug and connector, type 1 to type 2, 1 phase
Vehicle side (EV): 32A 1 phase Type 1 to Type 2 charging
Connector, screw type, for charging your EV up to 7.2 kW.
Infrastructure side (EVCS): 32A 1-phase Type 1 to Type 2 charging plug
Compliance standard: IEC/EN 62196-1/2:2016
Attractive, ergonomic hand-held design for easy plugging and unplugging
Working length of 5 m, made of thermoplastic material. Protection class IP67, flame retardant, pressure, wear and impact resistant.
FAQ
Q1. What is your packing of portable evse wall box charger Cable?
A:Generally, we pack our portable evse wall box charger Cable in neutral brown cartons If you have legally registered patent, we can pack the portable evse wall box charger in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A Paypal, T/T Transfer, Credit Card, Alibaba Assurance, West Union.
Q3. What is your terms of delivery?
A. EXW, FOB, CFR, CIF. DDU
Q4.How do you deliver your goods to me? How long will it take?
A:We have various ways of shipment for customers to choose DHL, TNT, UPS, Air freight, Ocean freight.
Q5. How about your delivery time?
A: Generally, it will 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7. Do your products have quality certification? How long is the warranty time?
A:All of EV charging products posses with CE, TUV certificate, J1772 products posses with UL certification Generally speaking, the warranty time is 24 Month.
Q8: How do you make our business long-term and good relationship?
A.1. We provide good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from
