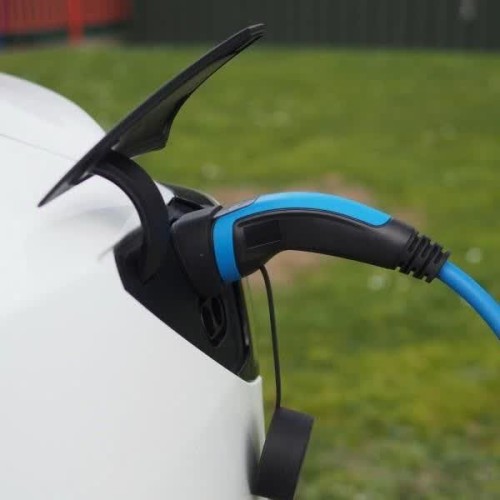

Tethered 11kW 3 Phase Type 2 Cable 16A EV Charging Standard Connector
- Brand: OEM
- Product Code: ANSAG-T2-11kW
- Availability: In Stock
-
$99
Product Information
Premium 63A Type 2 EV Charging Cable | IEC 62196-2 Certified | 415V AC Fast Charging | Home & Commercial Use
Page Description:
Upgrade your EV charging experience with our high-quality 63A Type 2 EV Charging Cable, engineered for fast, safe, and reliable power delivery. Designed to meet IEC 62196-2 standards, this 415V AC charging cable ensures superior compatibility with major EV models, including Tesla, BMW, Audi, and more.
Key Features:
✅ Fast Charging – Supports high-power 63A current for rapid charging.
✅ Durable & Safe – Robust construction with premium materials for long-term use.
✅ Universal Compatibility – Type 2 plug fits most home & public charging stations.
✅ Flexible & Weatherproof – Ideal for indoor/outdoor applications.
Perfect for:
Home charging stations
Commercial & fleet charging
Public EV charging networks
As a trusted EV charging cable manufacturer, we guarantee top-tier performance, safety, and durability. Boost your EV setup with our Type 2 fast-charging cable—engineered for efficiency and innovation!
11kW 3 Phase Type 2 Cable
,16A 3 Phase Type 2 Cable
,3 Phase Type 2 Tethered Cable
Product Name: |
11kW Ev Charging Cables |
Amps: |
16A |
Voltage: |
480V |
Connector Standard: |
Type 2 Open End Cables |
Length: |
5M |
Materials: |
Huntsman |
Plug Standard: |
IEC 62196 |
Grounding: |
Standard Grounding |
Warranty: |
24 Months |
Phase: |
3phase |
Product Name: |
11kW Ev Charging Cables |
Amps: |
16A |
Voltage: |
480V |
Connector Standard: |
Type 2 Open End Cables |
Length: |
5M |
Materials: |
Huntsman |
Plug Standard: |
IEC 62196 |
Grounding: |
Standard Grounding |
Warranty: |
24 Months |
Phase: |
3phase |
Tethered EV Cables IEC 62196 16A 480V 3phase type 2 ev cable 11kW ev charging Cables
Product Features
-Standard Connector, can be identified by EV (with Type 2 inlet) correctly and charge effectively.
-Rugged design. Its structural strength is sufficient enough to support the rolling of an electric car.
-Unique Arc Extinguishing technique makes sure that there won't have any electric sparks when plugging in and plugging out.
-Safe & Reliable. The cable is made of flame-retardant TPU material, which can withstand the direct fire combustion within a safe time.
-Durable. The advanced Crimping Technology ensures a working life of over 3000 times safe plugging in or out without any off-line error.
| ProductModel: | ANSAG-T2-16A | |
| Product Type | Type 2 ev charging cable | |
| Stardard: | IEC 62196-2 | |
| Rated Voltage: | AC 480V | |
|
Rated Current:16 |
A | |
| Withstanding voltage: | 2000V | |
| Working temperature: | -30℃ to +65℃ | |
| StorageTemperature: | -40℃ to +70℃ | |
| Terminal temperature rise: | <50K | |
| Contact impedance: | 0.5mMax | |
| Protection level: | IP67 | |
|
Certifications: |
TUV CE | |
| Warranty: | 2 years | |
| Plug Colour: | Black, Red, Orange, Yellow, Green, Blue or Customization | |
| Mechanical life: | No-load plug in/pull out>10000 times | |
| Insertion and Extration Force: | 45N | |
|
Impato fex ternal force: |
Can afford 1m drop and 2T vehicle run over pressure |
|
| Part name | Material | Supplier |
| Cable | PUR (TPU) | HUNTSMAN: A85P4380 |
| Shell of plug | PC+PBT | SABIC:V3900WX |
| Head of plug | PA66+GF25 | DUPONT: FR50 |
- Conform to the provisions and requirements of IEC 62196-2 2016 2-lle
- Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
- XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
- Excellent protection performance, protection grade achieved IP55 ( working condition )
- Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
Applied Materials
- Shell material: thermoplastics, flame retardant grade UL94-0
- Operating temperature: -30°C~ +50°C
Our business scope includes charging pile equipment, wind power generation equipment, photovoltaic power generation equipment
and other products, providing targeted products and solutions for government public power, transportation service charging, and private
supporting power supply facilities.
All the products are produced in strict accordance with CQC standards, and obtained CCC, TUV, UL and other certifications.
We adhere to the development concept of high efficiency, energy saving and environmental protection. With independent innovation and customer service as the foundation; market-oriented, quality of survival. We firmly believe that ANS EVSE will surely set sail and create brilliance!
Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949
