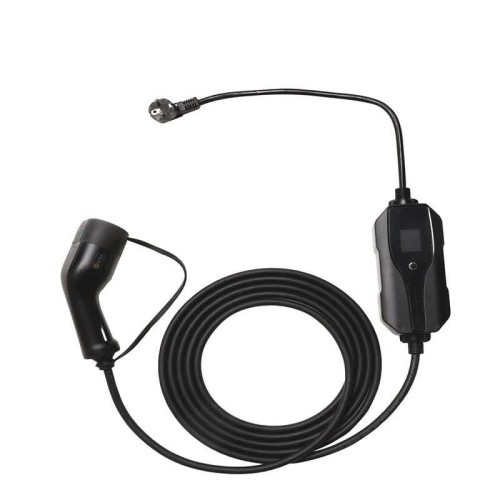

J1772 Type1 Plug 10A 13A 5m Portable EV Charger With UK Plug Mode 2
- Brand: OEM
- Product Code: ANSYH-P-uk
- Availability: In Stock
-
$160
Product Information
Product Listing:
J1772 Type 1 Plug, Portable EV Charger: This powerful and portable EV charger is the perfect solution for charging your electric vehicle at home, work, or on the go. Featuring a J1772 Type 1 plug, 10A or 13A current options, and a 5m charging cable, this charger offers fast and convenient charging for all Type 1 electric vehicles.
Key Features:
J1772 Type 1 Plug: Compatible with all Type 1 electric vehicles.
Portable Design: Lightweight and compact for easy transport and storage.
10A or 13A Current Options: Choose the right current for your needs.
5m Charging Cable: Provides ample reach for convenient charging.
UK Plug: Compatible with UK electrical outlets.
Mode 2 EV Charger: Safe and reliable charging for your vehicle.
Fast Charging: Get a full charge in a fraction of the time.
Durable Construction: Built to last with high-quality materials.
Applications:
Home EV charging
Workplace EV charging
Public EV charging stations
Emergency charging on the go
Innovation and Attractiveness:
This portable EV charger is designed with the latest technology and innovation in mind. Its compact size and lightweight design make it easy to take with you wherever you go. The 10A or 13A current options allow you to choose the right charging speed for your needs, while the 5m charging cable provides ample reach for convenient charging.
Page Description:
J1772 Type 1 Plug, Portable EV Charger: This powerful and portable EV charger is the perfect solution for charging your electric vehicle at home, work, or on the go. Featuring a J1772 Type 1 plug, 10A or 13A current options, and a 5m charging cable, this charger offers fast and convenient charging for all Type 1 electric vehicles.
13A Portable EV Charger
,5m Portable EV Charger
,UK Plug 5m EV Charging Cable
Product Name: |
10A Portable EV Charger |
Brand: |
ANS |
Rated Current:: |
10A |
Stardard: |
IEC62196-3 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV/CE |
Operating Temperature:: |
-30℃-+50℃ |
Application: |
AC Home Charging |
Product Name: |
10A Portable EV Charger |
Brand: |
ANS |
Rated Current:: |
10A |
Stardard: |
IEC62196-3 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV/CE |
Operating Temperature:: |
-30℃-+50℃ |
Application: |
AC Home Charging |
J1772 Type1 Plug 10A 13A 5metres EV Charging Cabl With UK Plug Mode 2 Wallboxes Portable EV Charger
Product Description
|
1 Electric parameter
|
|
|
1.1 Rated Frequency
|
50/60Hz
|
|
1.2 Rated current
|
8/10/13/16/32A
|
|
1.3 Rated voltage
|
single-phase, 230V±15%, 50/60Hz
|
|
2 Mechnical Parameter
|
|
|
2.1 IP Code
|
IP67
|
|
2.2 Charging Adapter Cable
|
5 meters cable or custom length
|
|
2.3 Dimensions
|
W × D × H = 230 × 93× 62 mm
|
|
2.4 Weight
|
＜5kg
|
|
2.5 Input Plug Standard
|
Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug
|
|
3 Functional Description
|
|
|
3.1 Charging Control Model
|
Plug and play
|
|
3.2 Display Screen(Optional)
|
OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.)
|
|
3.3 Indicator Light
|
4 LED indicators-Power/ Connection/ Charging/ Fault
|
|
3.4 RCD type
|
Type A
|
|
3.5 Adjustable output current
|
Button options: 8A/10A/13A/16/32A
|
|
3.6 Preset function
|
Preset charging time trough the button
|
|
3.7 Safety Protection
|
surge protection, over temperature, leakage, over/under voltage, over current, ground protection
|
|
4 Environmental Conditions
|
|
|
4.1 Operational environment
|
indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases
|
|
4.2 Vibration
|
＜0.5G, no violent vibration and impact
|
|
4.3 Altitude
|
≤2000 meters
|
|
4.4 Storage Temperature
|
-30 ~ 75 ℃ (-22 ~ 167 ℉)
|
|
4.5 Operating Temperature
|
-30 ~ 55 ℃ (-22 ~ 131 ℉)
|
|
4.6 Operating humidity
|
95%RH, no water droplet condensation
|
Product Detail
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
When the internal temperature of the control box exceeds 85°C,enter over-tempe
LED Display:
1. Charging Temperature
2. Charging Current
3.Charging Voltage
4. EnergyCharged in KW/h
5. Charging speed in KW
Features
Electric Vehicle Car Portable Charger J1772 Type1 Plug 10A 13A 5metres EV Charging Cabl With UK Plug Mode 2 Wallboxes Port
Warnings:
● Do not use the charging box if it is damaged.
● Only use for EV charging
● Please do not disconnect while the charging box is charging.
Specifications:
Length: Total 5meters
IP Grade: IP65 waterproof
Rated Current: 8/10/13Amp adjustable
Input/Output: 240V 50Hz
Operating Temperature: -30℃~+50℃
Pin Material: Copper Alloy, Silver+ Thermoplastic On the Top
Retardant Frade: UL94V-0
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
