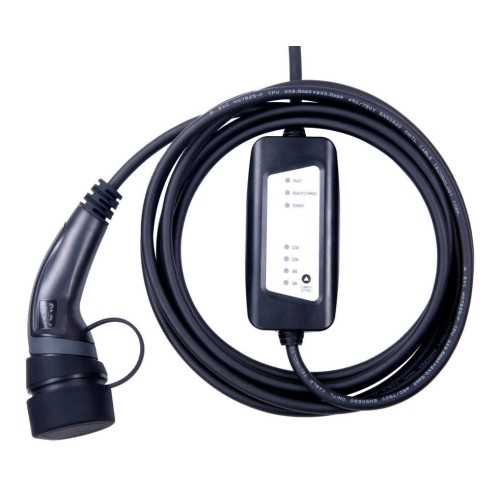

IEC 62196 Type 2 EVSE Home Charger 16A 250V With Current Adjustable
- Brand: OEM
- Product Code: ANS-T2-3.6kW
- Availability: In Stock
-
$160
Product Information
Looking for a reliable and efficient way to charge your electric car at home? Look no further than our IEC 62196-compliant Type 2 EV Charger, the perfect solution for all your electric vehicle charging needs.
Our EV Charger boasts a range of impressive features:
Type 2 connector: Compatible with all Type 2 electric vehicles in Europe and beyond.
Adjustable current: Choose the ideal charging rate for your needs, from 6A to 32A.
250V operation: Ensures safe and efficient charging for your vehicle.
Durable construction: Built to withstand the elements and provide years of reliable service.
Smart features: Monitor your charging progress, schedule charging sessions, and receive notifications through the intuitive app.
Whether you're a seasoned EV owner or just making the switch, our EV Charger is the perfect choice for your home.
Here are just a few of the many ways you can use it:
Charge your car overnight for a full battery in the morning.
Top up your battery during the day while you're at work or running errands.
Use it as a backup charging option in case of power outages.
With its innovative design and user-friendly features, our EV Charger is the ideal way to make electric vehicle ownership even more convenient and enjoyable.
Order yours today and experience the future of electric vehicle charging!
Page Description:
Looking for a top-of-the-line EV charger for your home? Our IEC 62196-compliant Type 2 EV Charger is the perfect solution, offering adjustable current, smart features, and durable construction. Charge your car overnight, top up your battery during the day, or use it as a backup charging option. Order yours today and experience the future of electric vehicle charging!
IEC 62196 EVSE Home Charger
,Current Adjustable EVSE Home Charger
Product Name: |
Portable EV Charger |
Amps: |
16A |
Voltage: |
250V |
Power: |
3.6kW |
Amps Switch: |
6/7/8/9/10/11/12/13/14/15/16A |
Protection: |
Over Current，over Voltage .etc |
Logo: |
Support Logo Customzation |
Wall Side Plug: |
Schuko Plug |
Product Name: |
Portable EV Charger |
Amps: |
16A |
Voltage: |
250V |
Power: |
3.6kW |
Amps Switch: |
6/7/8/9/10/11/12/13/14/15/16A |
Protection: |
Over Current，over Voltage .etc |
Logo: |
Support Logo Customzation |
Wall Side Plug: |
Schuko Plug |
IEC 62196 Type 2 EVSE Home Charger 16A 250V with Current Adjustable Portable EV Charger
PRODUCT DESCRIPTION
Portable EV Charging Cable is so convenient , portable, and plug-and-play. This product is independently researched and accordance
with the latest national standards. It has good performance when charging. There are more electric protections and direct human-computer
interaction interface. Control box is durable by adopting ergonomic surface design which makes the shell become solider and stronger.
|
Item |
Mode 2 EV Charger portable charger |
|
Install |
Portable, plug and Play |
|
Output Current |
6A Min - 16A Max |
|
Voltage(choose one only) |
AC220V/120V/208V/240V |
|
Input Voltage AC |
110-250V 50Hz/60Hz |
|
International Protection Marking |
IP66 |
|
Output Detection |
1.Short circuit protection 2.Over and under frequency protection 3. Over and under Current Protection 4.Leakage Current Protection (restart recover) 5.Over Temperature Protection 6.Overload protection (self-checking recover) 7. Ground Protection 8.Over voltage and under-voltage protection 9.Lighting Protection |
|
Operating Temperature |
-25℃~+55℃ |
|
Storage Temperature |
-40℃~+80℃ |
|
Operating Humidity |
20%-85% |
|
Dimension |
Control Box:170(L)*84(M)*42mm(H) Device cable: 6M or customized(L) |
|
Weight |
2.8kg |
|
Standard |
IEC 62752 , IEC 61851 |
How to start charging
Step 1. Take out the charger and firmly insert the plug into socket-outlet.
Step 2. Pull cap lightly, completely plug the vehicle connector into your vehicle inlet.
Step 3. Factory default current is 32A, please press the button of "CURRENT SETTING" to adjust your required current. amperes to max. 32 ampere cycles. The device will default to the last current setting when you charge next time.
Step 4. The device start charging automatically while the READY/CHARGE, POWER indicators are all green.
How to stop charging
Step 1. Disconnect the vehicle connector from the vehicle inlet.
Step 2. Close protective cap of vehicle inlet, put on the protective cap of vehicle connector.
Step 3. Disconnect the plug from the socket-outlet.
Step 4. Pack up the EV charger cable and put into the bag.
Precautions
-
Please check if the device is intact and items are accordance with the packing list when you receive the package. If there are any abnormalities,
-
please contact the sales timely or reject the goods.
-
Power-supply side input cable should be at least 3x2.5mm ²(recommended 3x4mm²).It is suggested that the power distribution is done by the professionals.
-
Do not submerge the control box or charging connector in water, and don't step on, pull, fold or knot the cable.
-
Ensure charging connector, plug, cable and control box are free of any abnormalities such as scratches, rusts, cracks, etc.
-
Don't charge if the socket is damaged, rusted, cracked or loosely connected, then contact the professionals to dispose.
-
Wipe with a clean and dry cloth if the plug gets dirty or wet.
-
Ensure power plug and socket are consistent before charging,especially the Current & Voltage.
Certification: CE
