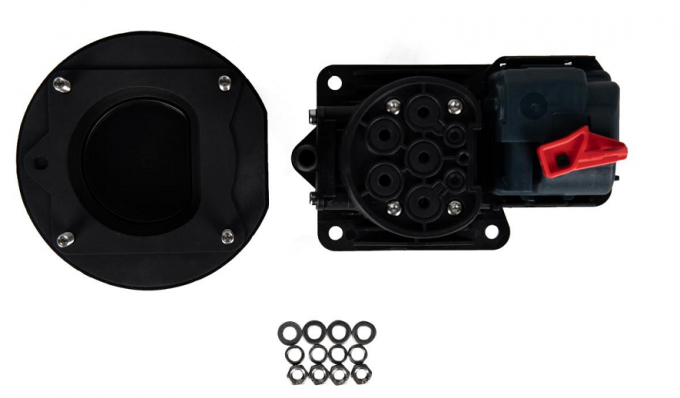

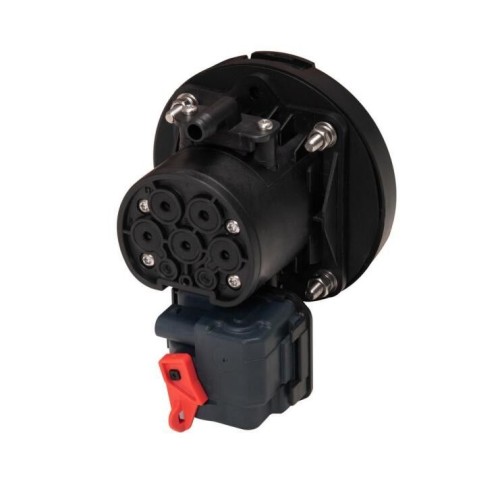

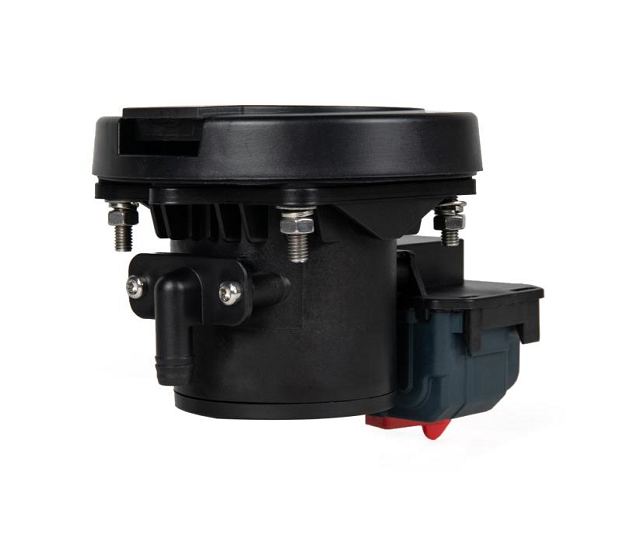

IEC 62196-2 EV Charging Accessories Type 2 Female Socket With Hella Lock
- Brand: OEM
- Product Code: ANS-T2S-32A
- Availability: In Stock
-
$35
Product Information
IEC 62196-2 Type 2 Female Socket
Hella Lock
TUV Certified
Charging Solutions for Every EV
Product Listing:
Introducing the next generation of EV charging accessories! Our IEC 62196-2 Type 2 Female Socket with Hella Lock and TUV Certification delivers unparalleled security, reliability, and innovation for your electric vehicle charging needs.
Key Features:
IEC 62196-2 compliant: Ensures compatibility with all Type 2 charging cables.
Hella Lock: Provides secure locking mechanism for added peace of mind.
TUV Certified: Guarantees the highest quality and safety standards.
Durable construction: Built to withstand harsh weather conditions.
Easy installation: Can be quickly and easily installed on any EV charging station.
Applications:
Public charging stations
Commercial and residential charging installations
Fleet charging solutions
And more!
Benefits:
Enhanced security: The Hella Lock prevents unauthorized access to your charging port.
Increased reliability: TUV Certification ensures the product meets the highest quality standards.
Improved user experience: The ergonomic design and easy installation make charging your EV a breeze.
Sustainable solution: Supports the transition to a greener future.
Available in a variety of configurations to meet your specific needs.
Contact us today to learn more about our innovative EV charging accessories!
Page Description:
Looking for secure, reliable, and innovative EV charging accessories? Look no further than our IEC 62196-2 Type 2 Female Socket with Hella Lock and TUV Certification. This top-of-the-line product is perfect for public charging stations, commercial and residential installations, and fleet charging solutions. With its durable construction, easy installation, and enhanced security features, it's the perfect choice for any EV owner. Contact us today to learn more!
TUV EV Charging Accessories
,Hella Lock EV Charging Accessories
,IEC 62196-2 Type 2 Female Socket
Product Name: |
EV Charging Accessories |
Rate: |
32A |
Voltage: |
250V |
Standards: |
IEC 62196-2 |
Material: |
Thermoplastic |
Type: |
Extension Socket |
Function: |
Power Charging |
Customzation: |
Support Customzation |
Power: |
7kW |
Product Name: |
EV Charging Accessories |
Rate: |
32A |
Voltage: |
250V |
Standards: |
IEC 62196-2 |
Material: |
Thermoplastic |
Type: |
Extension Socket |
Function: |
Power Charging |
Customzation: |
Support Customzation |
Power: |
7kW |

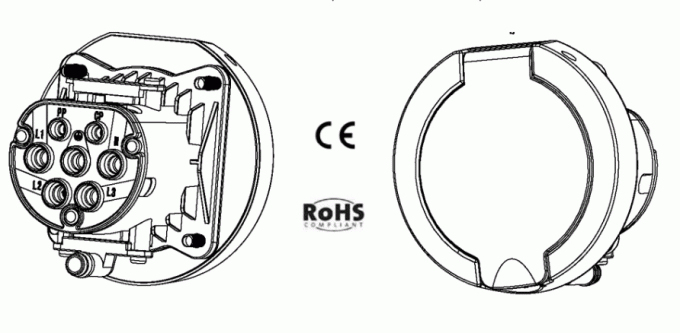

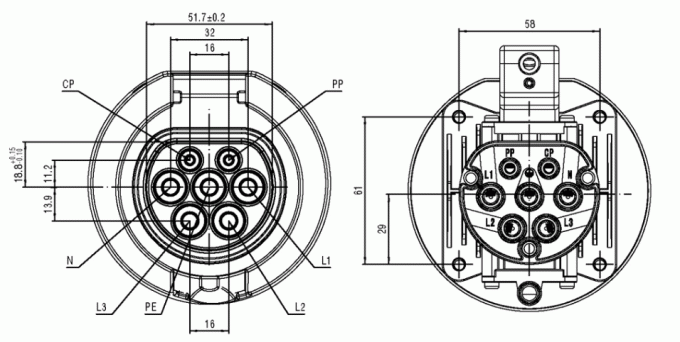

Type 2 female sockets 32A 250V 7kW charging stations sockets with Hella Lock EV Charging accessories
Mechanical properties
Mechanical life: no-load plug >10000times
●Insertion force: <100N
Applied Materials
Shell material: thermoplastics,flame retardant grade UL94V-0
● Contact-tube: Copper alloy,silver platedSeal: Rubber,Silicone
Environmental performance
● Operating temperature:-30℃-+50℃
● Waterproof rate: IP55
Electrical Performance
● The rated current: 16A,32A,40A
● The rated voltage: 250V/440V
Insulation resistance∶>1000MΩ (DC500V)
● Pins temperature rise: <50K· Withstand voltage: 2000V
● Contact impedance∶ 0.5mΩMax
Features
1) Conform to the provisions and requirements of IEC62196-2 2016.
2) Match with Hela locking device.
3)Have one or two PTC(PT1000)thermistor (can match with NTCor Temperature control switch).
4)Beautfulappearance,preventioncap can be installed on theleft side,the right side or the fron ofi
5)Reliable material,flame retardant,pressure proof, wear-resisting.impact resistance,high oil proof
6)Excellent protection performance,protection grade achieved IP55 (working condition)).
| Standards | IEC62196-2 Standard |
| Rated Voltage | 480V |
| waterproof | IP55 |
| warranty | 12months |
| Mechanical life | no-load plug in/pull out>10000times |
| Material | Thermoplastic, copper terminal with sliver plating. |
Package and shipping

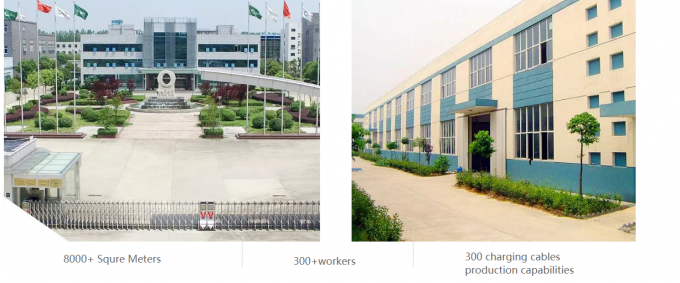

Factory photos
Certification: TUV, CE,IATF16949,ISO 9001 Certification
