32A 480V Type 2 To Type 2 EV Charging Cable IEC 62196 3 Phase Charging Cable
- Brand: OEM
- Product Code: ANSAG-T2-T2-32A
- Availability: In Stock
-
$99
Product Information
32A 480V Type 2 to Type 2 EV Charging Cable | IEC 62196 Certified | 3-Phase Fast Charger Cable
Page Description:
Premium 32A 480V Type 2 to Type 2 EV Charging Cable – IEC 62196 compliant, high-performance 3-phase electric vehicle charger cable for fast, safe charging. Ideal for home, commercial, and public EV stations. Durable, high-voltage rated, and compatible with major EV models. Upgrade to industry-leading fast EV charger cables today!
Product Description:
High-Performance 32A 480V Type 2 to Type 2 EV Charging Cable
As a leading factory supplier of EV charging accessories, we present our premium Type 2 to Type 2 EV charging cable, engineered for fast, reliable, and safe electric vehicle charging. Compliant with IEC 62196 standards, this 3-phase EV charger cable delivers 32A at 480V, ensuring rapid power transfer for modern EVs.
Key Features:
✔ High Voltage & Fast Charging – Supports 480V, 32A for efficient 3-phase charging
✔ IEC 62196 Certified – Fully compliant with international safety standards
✔ Robust & Durable – Heavy-duty construction for long-term use in all conditions
✔ Universal Compatibility – Works with Tesla, BMW, Audi, VW, Hyundai, and more
✔ Flexible & Tangle-Free – High-quality materials for easy handling
Ideal Applications:
Home & Residential EV Charging Stations
Commercial & Public Charging Points
Fleet & Corporate EV Solutions
Fast-Charging Networks & Service Providers
Upgrade your EV charging setup with our high-voltage Type 2 cable—engineered for speed, safety, and durability. Contact us for bulk OEM/ODM orders!
480V Type 2 To Type 2 EV Charging Cable
,32A Type 2 To Type 2 EV Charging Cable
,IEC 62196 3 Phase Charging Cable
Product Name: |
Type 2 To Type 2 EV Charging Cable |
Amps: |
32A |
Charging Mode: |
Mode 3 Type 2 To Type 2 |
Voltage: |
480V 3 Phase |
Length: |
5M, 7.5M,10M |
Materials: |
HUNTSMAN, SABIC, DUPONT |
Plug Standard: |
IEC 62196 |
Cable Size: |
5*6+2*0.5mm2 |
Warranty: |
2 Years |
OEM: |
Support Customization |
Product Name: |
Type 2 To Type 2 EV Charging Cable |
Amps: |
32A |
Charging Mode: |
Mode 3 Type 2 To Type 2 |
Voltage: |
480V 3 Phase |
Length: |
5M, 7.5M,10M |
Materials: |
HUNTSMAN, SABIC, DUPONT |
Plug Standard: |
IEC 62196 |
Cable Size: |
5*6+2*0.5mm2 |
Warranty: |
2 Years |
OEM: |
Support Customization |
IEC 62196 Type 2 Electric Car Chargers EV Public Charging Cables 32A 480V 3Phase Type 2 to Type 2 EV Charging Cable
Product Features
| Electrical Performance | |||
| The rated current | 16A,20A,32A | The rated voltage | 120V,250V |
| Insulation resistance | > 1000MΩ (DC500V) | Pins temperature rise | <50K |
| Withstand voltage | 2500V | Contact impedance |
0.5mΩ Max |
|
Mechanical Properties |
|||
|
Mechanical life |
no-load plug> 10000 |
Insertion force: |
<100N |
|
Impact of external force |
can afford 1m drop and 2t vehicle run over pressure |
||
|
Part name |
Material |
Supplier |
|
Cable |
PUR (TPU) |
HUNTSMAN: A85P4380 |
|
Shell of plug |
PC+PBT |
SABIC:V3900WX |
|
Head of plug |
PA66+GF25 |
DUPONT: FR50 |
Specification:
- Waterproof -We use press machine to combine the plug with special whole design, our cables can use in the rain.
- arcing protection- with arc extinguishing protection, the plug-in process automatically eliminates the arc to ensure safety.
- cables Materials- our cables TPU is provided by Huntsman, shell of plug is provide by SABIC, and head of plug is DuPont
- Safety Assurance- already passed all tests of TUV,CE, they are all kind of protective measures to ensure the safety of every user.

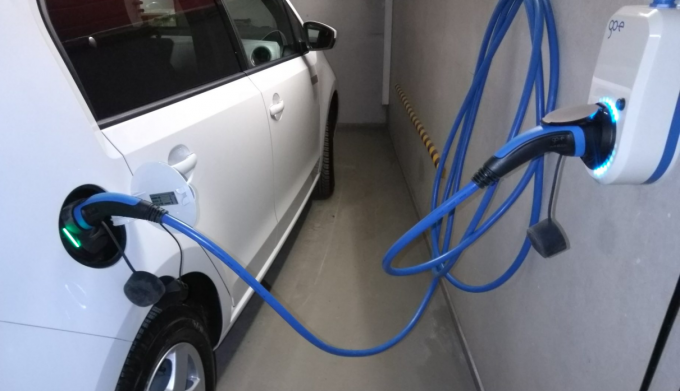

Application Case
About US
We not only got the certification of ISO9001 quality management system,ISO14001 environment system , OHSAS18001 occupational health and safetymanagement system,IATF 16949 management system but also though the Safety production standardization level 2,becoming a integration ofinformatization and industrialization pilot enterprise and standards implementationpilot enterprise,a national high-tech enterprise and well-known trademarks in China.We have more than 20 invention patents and utility model patents and ourproducts have got TUV, CCC, CE, UL certification.
The business category including the equipment of charging pile,wind powergeneration and photovoltaic power genetation, ect.Provide targeted products andsolutions for government public power,transportation service charging andprivate power supply facilities.
SGS approved
our cables cooper part and terminal contact are SGS approved, it meet IEC 62321-4:2013+AMD1:2017, IEC62321-5:2013 and 62321-7-1:2015 standards, RoHs EU 2015/863.
EV Charging Cables Specification,Plastic part,TPU materials
The charging plugs and cables plastic part is TPU that come from imported HUNTSMAN,Sabric, They all pasted CE,ROHS and friendly to people and environmental. Being responsible to our output and the environment is being trustworthy to our clients. Besides, we never forget our intention of making reliable products from the start. Hence, we are committed to utilizing green materials made to reduce carbon footprint, environmental contamination, or negative health effects.
TPU sheath
The TPU cable itself has adopted environmental raw materials and totally halogen free. It won’t release any harmful smell or gas even under burning.The halogen free cable can effectively prevent itself from burning in large area.
Why need Halogen-free?
When a fire unfortunately occurs, many people are not burnt to death, but basically smoked to death. Low smoke is emphasised by not producing large amounts of smoke, and halogen-free is the cable does not add substances such as chlorine and fluorine, which are chemical substances that give off toxic gases when burning and are toxic to the human body and are mainly considered to protect the personal safety of people.
Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949
