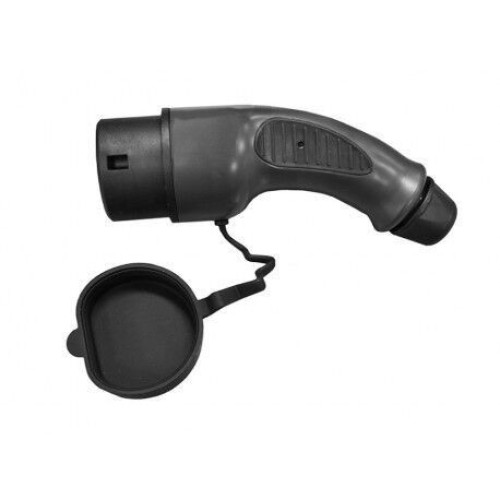

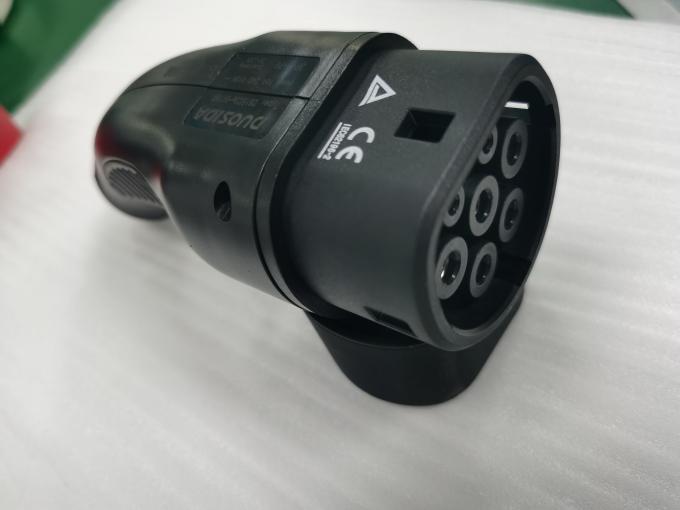

32A 3 Phase 5m Type 2 To Type 2 EV Charging Cable With Type 2 Female Plug
- Brand: OEM
- Product Code: ANSAG-T2-T2-32-ST
- Availability: In Stock
-
$80
Product Information
Charge confidently and efficiently with our premium 32A EV charging cable. This Type 2 to Type 2 cable is built to the highest standards, ensuring safe and reliable charging for your electric vehicle.
Key Features:
32A high-power charging: Get a full charge faster with 32A charging capability.
Durable construction: Built to withstand the elements with a robust and weatherproof design.
Type 2 to Type 2 compatibility: Compatible with all Type 2 electric vehicles in Europe and other regions.
5 meter length: Provides ample reach for convenient charging.
Multiple applications: Ideal for home, public, and workplace charging.
Our 32A EV charging cable is the perfect solution for:
EV owners who want to charge their vehicles quickly and efficiently.
Businesses and organizations that want to provide convenient EV charging for their customers and employees.
Anyone who wants a reliable and durable EV charging cable.
We are a leading manufacturer of EV charging accessories, and we are committed to providing our customers with the highest quality products. Our 32A EV charging cable is backed by our industry-leading warranty, so you can be confident in your purchase.
Order your 32A EV charging cable today and experience the difference!
Page Description:
32A EV Charging Cable - Type 2 to Type 2 - 5m - Durable & Efficient
Charge your electric vehicle quickly and safely with our premium 32A EV charging cable. Compatible with all Type 2 EVs, this 5m cable is built to last and provides convenient charging at home, work, or on the go. Order now!
5m Type 2 To Type 2 EV Charging Cable
,3Phase Type 2 To Type 2 EV Charging Cable
,Type 2 To Type 2 32A EV Charging Cable
Product Name: |
3phase Type 2 To Type 2 Electric Vehicle Charging Cable |
Brand: |
ANS |
Material: |
TPU |
Rated Current:: |
32A |
Stardard: |
IEC 62196-2 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV |
Type: |
Electrical Plug |
Color: |
Black |
Product Name: |
3phase Type 2 To Type 2 Electric Vehicle Charging Cable |
Brand: |
ANS |
Material: |
TPU |
Rated Current:: |
32A |
Stardard: |
IEC 62196-2 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV |
Type: |
Electrical Plug |
Color: |
Black |
32A Type 2 IEC female charging cable with 3-phase 5M Type 2 To Type 2 EV Charging cable
Product Description
|
Input & Output |
|||
|
Input voltage/Output voltage |
100~250V AC |
Max. output current |
32A 3Phase |
|
Input frequency |
47~63Hz |
Charging interface type |
Type 2-2 |
|
Max. output power |
11KW |
|
|
|
Protection |
|||
|
Over voltage protection |
yes |
Earth leakage protection |
yes |
|
Under voltage protection |
yes |
Over-temp protection |
yes |
|
Over load protection |
yes |
Lightning protection |
yes |
|
Short circuit protection |
yes |
|
|
|
Function and Accessory |
|||
|
Ethernet/WIFI/4G/Bluetooth |
No |
Cable gauge |
5*6mm2 + 2*0.5mm2 |
|
Plug type |
Type 2-Type2 male&female |
Plug material |
ABS |
|
Length |
5 meters |
Cable material |
TPU |
|
Working environment |
|||
|
Waterproof Protection degree |
IP67 |
Maximum altitude |
<2000m |
|
Environment temperature |
-40℃ ~ +50℃ |
Cooling |
Natural air cooling |
|
Relative humidity |
0-95% non-condensing |
Standby power consumpiton |
<8W |
|
Package |
|||
|
Dimension (W/H/D) |
40/38/8cm |
Weight |
4KG |
|
Certificate |
CE, TUV, |
||
Product Detail
Technical Specifications
- Type 2 connectors (mennekes) on both sides
- Mode 3 cable for connection to charging stations
- Maximum current: 32A
- Maximum voltage: 400V
- Maximum charging power: 22 kW (3 phases)
- Operating temperature range: -30 ° C to 50 ° C
- Cable length: 5 and 8 m
- Black color with white elements
Security and certificates
All charging cables have been tested to ensure their performance. When connected, the protection level is IP44, and the certified protection level when using the protective cover is IP54. The connector complies with IEC 62196-2 and SAE J1772 standards.
The cable comes with a standard warranty of 24 months.
If you have almost no charging cable whether this connector is suitable for your car, you can go to our electric car database, where you can find your model and the type of its connector, or you can contact us at any time .
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
