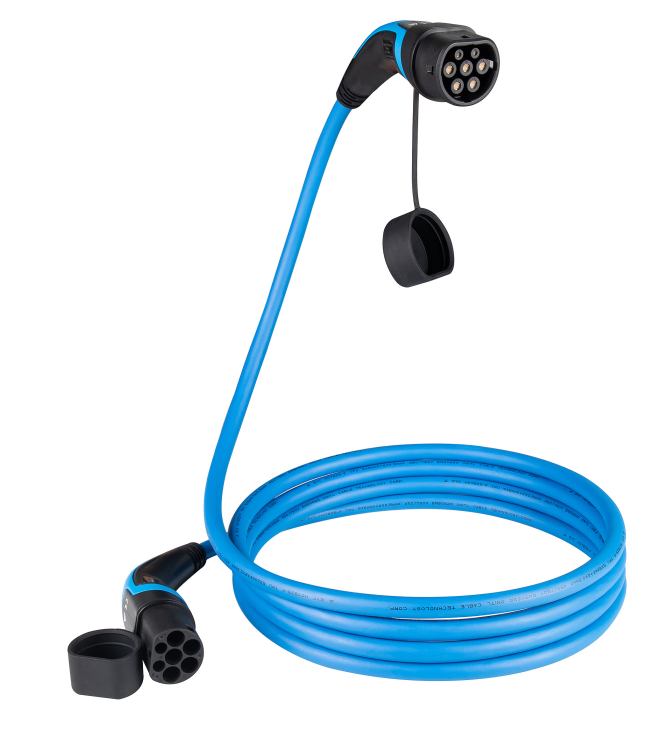

32A 250V 7kW Type 2 To Type 2 EV Charging Cable Standard Grounding
- Brand: OEM
- Product Code: ANSAG-T2-T2-32A
- Availability: In Stock
-
$99
Product Information
Page Description:
Upgrade your EV charging experience with our high-performance 7kW Type 2 to Type 2 EV Charging Cable—engineered for reliability, safety, and speed. Designed for 250V systems, this standard grounding EV charger ensures stable power delivery for Tesla, BMW, Audi, Volkswagen, and other Type 2-compatible EVs.
Key Features:
✅ 7kW Fast Charging – Optimized for home, workplace & public stations.
✅ Heavy-Duty Construction – Weatherproof, abrasion-resistant & durable for indoor/outdoor use.
✅ Safety Certified – Fully grounded with overcurrent/overheat protection.
✅ Universal Compatibility – Seamless plug-and-play for Type 2 sockets across Europe & Asia.
Ideal for:
Home charging stations
Commercial fleets & parking lots
Hotels & shopping centers with EV infrastructure
As a trusted EV charging accessories factory supplier, we guarantee OEM/ODM support and strict quality control. Boost efficiency with innovation—order now!
7kW Type 2 To Type 2 EV Charging Cable
,250V Type 2 To Type 2 EV Charging Cable
,Standard Grounding 7kw EV Charger
Product Name: |
Type 2 To Type 2 EV Charging Cables |
Amps: |
32A |
Charging Mode: |
Standard Grounding |
Voltage: |
250V |
Length: |
5M |
Materials: |
Huntsman |
Plug Standard: |
IEC 62196 |
Grounding: |
Standard Grounding |
Warranty: |
24 Months |
Phase: |
1phase |
Product Name: |
Type 2 To Type 2 EV Charging Cables |
Amps: |
32A |
Charging Mode: |
Standard Grounding |
Voltage: |
250V |
Length: |
5M |
Materials: |
Huntsman |
Plug Standard: |
IEC 62196 |
Grounding: |
Standard Grounding |
Warranty: |
24 Months |
Phase: |
1phase |
32A 250V 7kW EV Charging Plugs TPU Materials Halogen Free Cables Type 2 to Type 2 EV Charging Cables
Product Features
- Conform to the provisions and requirements of IEC 62196-2 2016 2-lle
- Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
- XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
- Excellent protection performance, protection grade achieved IP55 ( working condition )
- Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
Applied Materials
Shell material: thermoplastics, flame retardant grade UL94-0
Operating temperature: -30°C~ +50°C
| ProductModel: | ANSAG-T2-T2-32A | |
| Product Type | Type 2 to Type 2 ev charging cable | |
| Stardard: | IEC 62196-2 | |
| Rated Voltage: | AC250V | |
|
Rated Current: |
32A | |
| Working temperature: | -30℃ to +65℃ | |
| StorageTemperature: | -40℃ to +70℃ | |
| Terminal temperature rise: | <50K | |
| Contact impedance: | 0.5mMax | |
|
Certifications: |
TUV CE | |
| Warranty: | 2 years | |
| Mechanical life: | No-load plug in/pull out>10000 times | |
| Insertion and Extration Force: | 45N | |
|
Impato fex ternal force: |
Can afford 1m drop and 2T vehicle run over pressure |
|
| Part name | Material | Supplier |
| Cable | PUR (TPU) | HUNTSMAN: A85P4380 |
| Shell of plug | PC+PBT | SABIC:V3900WX |
| Head of plug | PA66+GF25 | DUPONT: FR50 |
Our business scope includes charging pile equipment, wind power generation equipment, photovoltaic power generation equipment
and other products, providing targeted products and solutions for government public power, transportation service charging, and private
supporting power supply facilities.
All the products are produced in strict accordance with CQC standards, and obtained CCC, TUV, UL and other certifications.
We adhere to the development concept of high efficiency, energy saving and environmental protection. With independent innovation and customer service as the foundation; market-oriented, quality of survival. We firmly believe that ANS EVSE will surely set sail and create brilliance!
ANS EVSE is the first supplier in China manufacturing and offering TPU cables(Thermoplastic polyurethanes) used on electric vehicle charging items. It is a special elastomer with a wide range of hardness and good elasticity.The TPU material from the charging cable generally refers to the polyether type TPU. The strength, hydrolysis resistance and low temperature performance of the polyether type TPU are superior.
- Wide range of products from AC to DC,total around 55 categories
- Advanced tech and the first TPU ev cable supplier
- Different color selection of plugs without MOQ--aound 6 differnet
- colors now as standard
- OEM service--print your own logo and make your own
- color for the charging items
- High competitive price comparing to other products on the market
- All charging prudcts are with CE/TUV/UL listed. ISO etc.Total 16certifications
- High quality of raw materials from Huntsman,Sabic,Dupont
- Product quality is widely aprroved by many car and charger factories as well, like JAC,BYD
- China, and Haima New energy etc.
- 2years warranty, life-time tech support
- High comment.We Have won around 688 positive feedbacks from customers
- Professional and efficient sales team offering you one stop charging solution for your business
- OEM service--Always making any samples meeting customers’ requirements. we can produce
- by your samples or technical drawings and can build the molds and fixtures.
- Fast delivery--We will send out your order usually within 7days for samples
Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949
