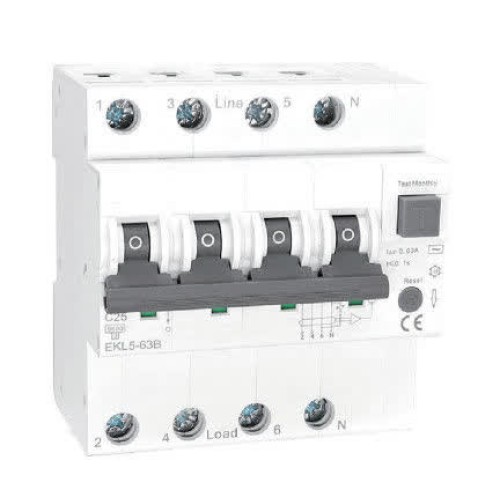

0.03mA RCD RCCB RCBO Circuit Breaker Type B 4 Pole For Protection
- Brand: OEM
- Product Code: ANS-RCBO-32A
- Availability: In Stock
-
$70
Product Information
High-Performance 0.03mA RCD & Type B Circuit Breaker for EV Charging – Premium Electrical Protection
Enhance safety and reliability in EV charging systems with our advanced 4-pole RCBO/RCCB solutions, featuring ultra-sensitive 0.03mA leakage detection and Type B RCD technology. Designed for high-performance electrical protection, our circuit breakers ensure compliance with stringent safety standards while safeguarding sensitive equipment.
Key Features:
✔ 0.03mA RCD – Exceptional sensitivity for shock prevention
✔ Type B Circuit Breaker – Full-spectrum DC/AC residual current protection
✔ 4-Pole RCBO/RCCB – Robust design for three-phase EV charging stations
✔ High-speed trip mechanism – Prevents electrical fires & equipment damage
✔ Wide Applications – Ideal for commercial EV chargers, industrial power systems, and smart grid infrastructure
As a leading factory supplier of EV charging accessories, we deliver innovative, durable, and certified electrical protection solutions. Upgrade your safety with our RCBO for sensitive equipment and high-performance circuit breakers—engineered for precision and longevity.
Explore our premium series today – Secure, Efficient, Future-Ready!
Enhance safety and reliability in EV charging systems with our advanced 4-pole RCBO/RCCB solutions, featuring ultra-sensitive 0.03mA leakage detection and Type B RCD technology. Designed for high-performance electrical protection, our circuit breakers ensure compliance with stringent safety standards while safeguarding sensitive equipment.
Key Features:
✔ 0.03mA RCD – Exceptional sensitivity for shock prevention
✔ Type B Circuit Breaker – Full-spectrum DC/AC residual current protection
✔ 4-Pole RCBO/RCCB – Robust design for three-phase EV charging stations
✔ High-speed trip mechanism – Prevents electrical fires & equipment damage
✔ Wide Applications – Ideal for commercial EV chargers, industrial power systems, and smart grid infrastructure
As a leading factory supplier of EV charging accessories, we deliver innovative, durable, and certified electrical protection solutions. Upgrade your safety with our RCBO for sensitive equipment and high-performance circuit breakers—engineered for precision and longevity.
Explore our premium series today – Secure, Efficient, Future-Ready!
Highlight:
4 Pole RCBO Circuit Breaker
,0.03mA RCBO Circuit Breaker
,0.03mA RCD RCCB RCBO 4 Pole
Product Name: |
RCBO Circuit Breaker |
Rated Current: |
32A |
Poles: |
4Pole (3P+N) |
Rated Voltage: |
4Pole: 400V/415V |
Rated Frequency: |
50/60Hz |
Rated Residual Operation Current: |
0.03mA |
Short-circuit Current Inc: |
Ic 10000A |
Standard: |
IEC 61008-1, IEC 62423 |
Product Name: |
RCBO Circuit Breaker |
Rated Current: |
32A |
Poles: |
4Pole (3P+N) |
Rated Voltage: |
4Pole: 400V/415V |
Rated Frequency: |
50/60Hz |
Rated Residual Operation Current: |
0.03mA |
Short-circuit Current Inc: |
Ic 10000A |
Standard: |
IEC 61008-1, IEC 62423 |
0.03mA RCD RCCB RCBO Circuit Breaker Type B 4 Pole For Protection
4 Pole Type B RCBO 4 poles B32A 0.03mA Residual Current RCBO Circuit Breaker
Technical Data
| Mode | Electronic | ||||||||||||||||||||||||||||||
| Type Rated current In |
B 16,20,25,32,40,50,63A |
||||||||||||||||||||||||||||||
| Poles | 2P(1P+N),4P(3P+N) | ||||||||||||||||||||||||||||||
| 2P 240V~ | |||||||||||||||||||||||||||||||
| Rated voltage Ue Insulation voltage Ui |
4P 415V~ | ||||||||||||||||||||||||||||||
| 500V | |||||||||||||||||||||||||||||||
| Rated frequency | 50/60Hz | ||||||||||||||||||||||||||||||
| Rated residual operating current(I△n) | 30,100,300mA | ||||||||||||||||||||||||||||||
| Break time under I△n | ≤0.1s(S type ＜0.5s) | ||||||||||||||||||||||||||||||
| Rated breaking capacity | 6,000A | ||||||||||||||||||||||||||||||
| Energy limiting class | 3 | ||||||||||||||||||||||||||||||
| Rated impulse withstand voltage(1.5/50) Uimp | 4,000V | ||||||||||||||||||||||||||||||
| Dielectric test voltage at ind.Freq. for 1min | 2kV | ||||||||||||||||||||||||||||||
| Pollution degree | 2 | ||||||||||||||||||||||||||||||
| Thermo-magnetic release characteristic | B,C | ||||||||||||||||||||||||||||||
Mechanical Features
| Electrical life | 4,000 Cycles | ||||||||||||||||||||||||||||||
| Mechanical life Contact position indicator |
10,000 Cycles Yes |
||||||||||||||||||||||||||||||
| Protection degree | IP20 | ||||||||||||||||||||||||||||||
| Reference temperature for setting of thermal element | 30℃ | ||||||||||||||||||||||||||||||
| Ambient temperature (with daily average≤35℃) | -5℃~+40℃ | ||||||||||||||||||||||||||||||
| Storage temperature | -25℃~+70℃ | ||||||||||||||||||||||||||||||
Installation
| Terminal connection type Terminal size top/bottom for cable |
Cable/Pin-type busbar/U-type busbar 25mm2 18-3AWG |
||||||||||||||||||||||||||||||
| Terminal size top/bottom for busbar | 25mm2 18-3AWG | ||||||||||||||||||||||||||||||
| Tightening torque | 2.5Nm 22In-lbs | ||||||||||||||||||||||||||||||
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device | ||||||||||||||||||||||||||||||
| Connection | From top | ||||||||||||||||||||||||||||||
Combination with accessories
| Auxiliary contact | EKM1-OF | ||||||||||||||||||||||||||||||
| Alarm contact Shunt release |
EKM1-FB EKM1-MX |
||||||||||||||||||||||||||||||
Tripping Current Range
| Lagging Angle 0° |
I△n＞0.01A 0.35I△n≤I△≤1.4I△n |
I△n≤0.01A 0.35I△n≤I△≤2I△n |
|||||||||||||||||||||||||||||
| 90° | 0.25I△n≤I△≤1.4I△n | 0.25I△n≤I△≤2I△n | |||||||||||||||||||||||||||||
| 135° | 0.11I△n≤I△≤1.4I△n | 0.11I△n≤I△≤2I△n | |||||||||||||||||||||||||||||
Certification:TUV
